HDTV: The Edsel of the CATV World

By May 1, 2002 every commercial TV station should have been transmitting its signals digitally. The average American family was supposed to be getting their favorite TV shows and sport programs in crystal-clear, high definition pictures, accompanied by movie theater quality sound.

So far the High Definition TV revolution is equivalent to Ford's introduction of the Edsel in the '50s - it's a flop. Between existing satellite/cable based digital televisions and sizeable collections of "low" definition DVD players, consumers have a slow migration path from the analog signals of the 1950's to the high definition signals of the mid 21st century.

Less than 30% of the commercial stations offer a digital version of their broadcast signals, and a pathetically limited number of programs are produced in the highest-quality HDTV format. It's no wonder that of the 22 million TV sets sold last year only 200,000 sets were equipped with digital over-the-air tuners. That is less than 1% of the sets sold last year!

The FCC is reluctant to issue tough mandates to solve the problem. Hollywood does not produce the expected number of programs with digital content. Broadcasters are content to transmit high definition test patterns. CATV systems do not carry their digital offerings, representing a big chunk of the TV audience. Finally with no content to watch, consumers are not willing to buy expensive early generation sets. And until the quantities of sets sold increases, Hollywood and broadcasters will not improve the content - a vicious circle.

Quoting FCC Chairman Michael Powell: "You have to get on the train, or it will run over you". Got the message? Like it or not, cable does not need any more PR black eyes. The CATV industry has to start digital TV carriage.

Ask these questions when attempting to distinguish signal from noise:

Are you familiar with the operational or licensed HDTV stations available in your area?
Management doctrine suggests that a new technology should be approached with data in hand. People in the trenches, do you have the proper DTV information in your files?
Are you aware that DTV can also create severe interference problems, affecting the picture quality of your currently carried analog stations?

Closing the DTV information gap, Biro Engineering can assist you with 55 mile radius printout of all analog and digital TV stations, listing computer calculated distances and Azimuth angles, as well as major technical parameters.

DIST MILES	CHAN	CALL	LOCATION	STATE	NETWK	DTV	POWER kW	OFST	HAAT FT.	AZIMUTH DEGS.	LEVEL dBmV
9.67	13	WRDM	HARTFORD	CT.	LP		1.0	0	233.	251.0	-5.5
15.92	18	WUVN	HARTFORD	CT.	SP		3192.0	-	980.	260.3	19.5
16.15	33	WFSB	HARTFORD	CT.	CBS	X	500.0	0	932.	260.4	10.3
16.15	3	WFSB	HARTFORD	CT.	CBS		100.0	+	904.	260.4	17.5
16.16	24	WEDH	HARTFORD	CT.	ED		817.0	0	855.	260.2	13.0
18.80	5	WTIC	HARTFORD	CT.	FOX	X	9.8	0	1014.	246.5	4.8
18.93	61	WTIC	HARTFORD	CT.	FOX		5000.0	+	1692.	246.3	17.2
19.02	30	WVIT	NEW BRITAIN	CT.	NBC		5000.0	+	1485.	245.7	19.0
19.02	32	WEDH	HARTFORD*	CT.	ED	X	200.0	0	1447.	245.7	4.9
19.02	35	WVIT	NEW BRITAIN	CT.	NBC	X	87.0	0	1499.	245.7	1.1
19.02	46	WUVN	HARTFORD*	CT.	SP	X	100.0	0	801.	245.7	1.0
21.49	22	WWLP	SPRINGFIELD	MA.	NBC		3390.0	0	880.	330.3	16.9
21.49	11	WWLP	SPRINGFIELD*	MA.	NBC	X	2.0	0	879.	330.3	-9.1
21.51	65	WDMR	SPRINGFIELD	CT.	LP		31.2	0	790.	330.5	-6.2
26.45	45	WEDN	NORWICH*	CT.	ED	X	200.0	0	630.	140.0	1.2
26.48	53	WEDN	NORWICH	CT.	ED		801.0	0	680.	140.1	6.8
26.59	47	WYDN	WORCESTER*	MA.	ED	X	101.0	0	1306.	31.6	-1.9
30.50	58	WGBY	SPRINGFIELD	MA.	ED	X	50.0	0	965.	345.2	-6.8
30.51	57	WGBY	SPRINGFIELD	MA.	ED		1465.0	+	1004.	345.3	7.9
30.52	40	WGGB	SPRINGFIELD	MA.	ABC		3720.0	0	1014.	345.2	13.0
30.52	55	WGGB	SPRINGFIELD*	MA.	ABC	X	500.0	0	1063.	345.2	3.4
31.39	26	WHPX	NEW LONDON	CT.	PAX		2820.0	+	1251.	150.6	12.5
31.41	34	WHPX	NEW LONDON*	CT.	PAX	X	90.0	0	1191.	150.6	-3.0
33.84	20	WTXX	WATERBURY	CT.	WBN		2240.0	0	1200.	232.9	11.3
33.86	12	WTXX	WATERBURY*	CT.	WBN	X	19.0	0	921.	233.0	-3.4
35.81	8	WTNH	NEW HAVEN	CT.	ABC		175.0	0	1191.	221.2	6.4
35.81	59	WCTX	NEW HAVEN	CT.	UPN		5000.0	+	1030.	221.2	11.8
35.81	10	WTNH	NEW HAVEN	CT.	ABC	X	175.0	0	1191.	221.2	6.1
35.83	6	WCTX	NEW HAVEN*	CT.	UPN	X	2.1	0	1093.	221.1	-7.9
39.70	65	WEDY	NEW HAVEN	CT.	ED		7.8	0	270.	212.4	-27.3
39.70	39	WEDY	NEW HAVEN*	CT.	ED	X	100.0	0	299.	212.4	-12.7
42.84	69	WPXQ	BLOCK ISLAND	R.I.	PAX		3470.0	-	673.	120.8	8.1
44.62	42	WBPT	BRIDGEPORT*	CT.	PAX	X	778.0	0	499.	225.8	-2.7
44.62	43	WSAH	BRIDGEPORT	CT.	IND		2298.0	-	510.	225.8	2.3
45.66	48	WYDN	WORCESTER	MA.	ED		240.0	+	807.	42.1	-2.9
47.59	17	WPXQ	BLOCK ISLAND*	R.I.	PAX	X	200.0	0	732.	110.2	-4.0
51.34	52	WEDW	BRIDGEPORT*	CT.	ED	X	50.0	0	620.	224.2	-19.8
51.36	49	WEDW	BRIDGEPORT	CT.	ED		1950.0	-	730.	224.1	-0.8
52.66	36	WSBE	PROVIDENCE	R.I.	ED		1230.0	0	597.	90.4	-6.8
53.82	27	WUNI	WORCESTER	MA.	SP		1150.0	0	1520.	47.8	3.8
53.83	29	WUNI	WORCESTER	MA.	SP	X	200.0	0	1486.	47.8	-3.9

*Licensed but not in operation yet

The search can be limited to DTV stations only, eliminating the possibility that any of the operational digital stations will be missed, or to consider stations which are licensed, but not operational yet.

DIST MILES	CHAN	CALL	LOCATION	STATE	NETWK	DTV	POWER kW	OFST	HAAT FT.	AZIMUTH DEGS.	LEVEL dBmV
16.15	33	WFSB	HARTFORD	CT.	CBS	X	500.0	0	932.	260.4	10.3
18.80	5	WTIC	HARTFORD	CT.	FOX	X	9.8	0	1014.	246.5	4.8
19.02	35	WVIT	NEW BRITAIN	CT.	NBC	X	87.0	0	1499.	245.7	1.1
19.02	46	WUVN	HARTFORD*	CT.	SP	X	100.0	0	801.	245.7	1.0
19.02	32	WEDH	HARTFORD*	CT.	ED	X	200.0	0	1447.	245.7	4.9
21.49	11	WWLP	SPRINGFIELD*	MA.	NBC	X	2.0	0	879.	330.3	-9.1
26.45	45	WEDN	NORWICH*	CT.	ED	X	200.0	0	630.	140.0	1.2
26.59	47	WYDN	WORCESTER*	MA.	ED	X	101.0	0	1306.	31.6	-1.9
30.50	58	WGBY	SPRINGFIELD	MA.	ED	X	50.0	0	965.	345.2	-6.8
30.52	55	WGGB	SPRINGFIELD*	MA.	ABC	X	500.0	0	1063.	345.2	3.4
31.41	34	WHPX	NEW LONDON*	CT.	PAX	X	90.0	0	1191.	150.6	-3.0
33.86	12	WTXX	WATERBURY*	CT.	WBN	X	19.0	0	921.	233.0	-3.4
35.81	10	WTNH	NEW HAVEN	CT.	ABC	X	175.0	0	1191.	221.2	6.1
35.83	6	WCTX	NEW HAVEN*	CT.	UPN	X	2.1	0	1093.	221.1	-7.9
39.70	39	WEDY	NEW HAVEN*	CT.	ED	X	100.0	0	299.	212.4	-12.7
44.62	42	WBPT	BRIDGEPORT*	CT.	PAX	X	778.0	0	499.	225.8	-2.7
47.59	17	WPXQ	BLOCK ISLAND*	R.I.	PAX	X	200.0	0	732.	110.2	-4.0
51.34	52	WEDW	BRIDGEPORT*	CT.	ED	X	50.0	0	620.	224.2	-19.8
53.83	29	WUNI	WORCESTER	MA.	SP	X	200.0	0	1486.	47.8	-3.9

*Licensed but not in operation yet

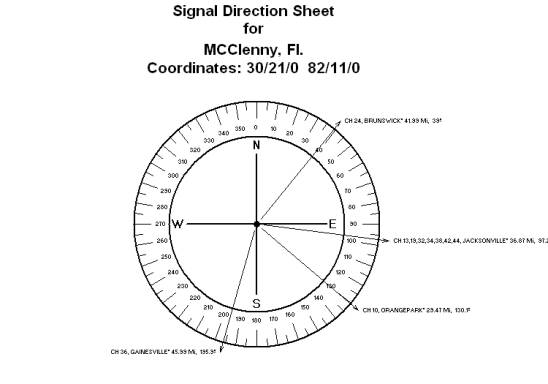

Another useful piece of information package is the DTV Signal Direction Sheet, displaying all DTV stations in 50, 75 or 100 mile radius, as depicted below:

DTV STATIONS IN A 50 MILE RADIUS

The above sample, developed for a small CATV system in rural Florida shows no operational DTV stations nearby. On the other hand there are many possible applications in the distant future, which should not be overlooked.

DTV INTERFERENCE CONSIDERATIONS

Another important objective of a DTV information package is interference protection.

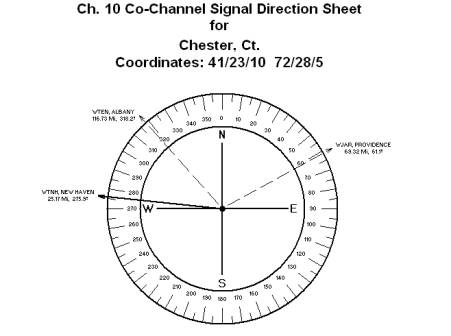

In case of Chester, Ct., the desired analog station, Channel 10, Providence, suffered periodic co-channel interference from the not too distant Channel 10 Digital station in New Haven, Ct. The Providence picture became noisy. The application of a co-channel filter was ineffective. The second choice, a properly designed phased-array, forcing a deep radiation pattern null into the New Haven direction was much more productive. The co-channel signal direction sheet shows the essential details.

The DTV Signal Direction Sheet below displays interference conditions for the reception of Channel 5, WTIC, Hartford, a low power DTV station, received from a distance of 17 miles.

DTV RECEPTION AFFECTED BY ANALOG TV STATIONS

CHAN

CALL

LOCATION

STATE

NTWK

DTV

POL

POWER
kw

OFST

HAAT
FEET

DIST

AZIMUTH
DEGS.

DESIRED STATION

WTIC

HARTFORD

CT.

FOX

9.8

1014.

17.03 MI

303.7

CO-CHANNEL CALCULATION

REL ANG

WCVB

BOSTON

MA.

ABC

100.0

960.

84.89 MI

52.5

108.8

WNYW

NEW YORK

N.Y.

FOX

18.0

1220.

93.48 MI

233.2

70.5

Channel 5 DTV reception suffers from double co-channel interference. The Channel 5, Boston and Channel 5, New York, analog stations are almost equidistant form Middletown, arriving exactly from the opposite directions.

A phased-array of two, horizontally stacked high-gain Yagis, with a horizontal spacing of H = 96 1/4", will ascertain highly effective interference rejection of both co-channel sources.

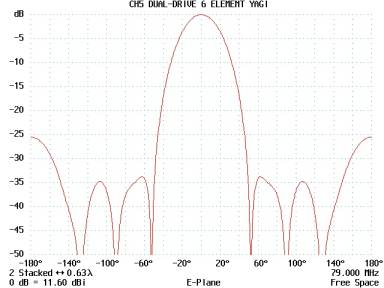

The rectangular radiation pattern below demonstrates the protection capabilities of the selected phased-array.

Co-channel interference protection via the application of properly designed phased-arrays is Biro Engineering 's specialty. Every design is accompanied by a computer generated radiation pattern demonstrating the level of interference rejection

THE ULTIMATE DIGITAL TV RECEPTION INTERFERENCE PROBLEMS

At location "Z" in the greater Boston Metropolitan area, the system wanted to carry Channel 19, the Digital TV station of Channel 2, Boston.

The Adjacent Channel Signal Direction Sheet, developed for the site, demonstrated that Channel 19 is squeezed-in between Channel 18 and Channel 20. All three are Boston DTV stations, but currently only Channel 19 and Channel 20 in operation.

CHANNEL 19 ADJACENT CHANNEL SIGNAL DIRECTION SHEET

Since all three transmit antennas are co-located, the signals arrive from the same direction. Consequently, a phased-array cannot protect the Channel 19 reception from the adjacent channel interference created by Channel 18 and Channel 20.

This unfortunate situation was created by the FCC frequency assignment. The cure rests with a technical review by the Agency.

CONCLUSION

A few weeks ago the National Cable TV Association (NCTA) pledged its full cooperation to speed up the introduction of High Definition TV. A nice political gesture toward Capitol Hill and the FCC, which should be followed through in the technical arena.

At the system level, the technical staff needs the proper information to start planning as well as to overcome picture quality problems. Summarizing the need-to-know data:

List of the area's DTV stations on-the-air (to be updated periodically).
Reception information (directions and distances).
Technical parameters of the stations (output power, transmit antenna height, polarization).
Noisy background, color distortions in the pictures? (Co-channel and adjacent channel interference sources).
Elimination of the interference. (Design and application of the proper antenna-arrays).

The above listed information and specialized technical assistance is available. Your inquiries are welcome.

For emergency engineering services:
Call: (609) 883-9866
E-mail: steven@biroengineering.com
Web site: www.biroengineering.com

Biro Engineering
