The constant changes in the status of DTV stations require periodic information updating.  No room for guesswork when planning the carriage of HDTV stations.

Need to know:

• Listing of DTV stations in the service area.
• Which are the licensed only stations, which are actually in operation.
• Technical parameters of the stations.
• Exact, computer-calculated distances and directions.

*** COMPUTER AIDED TV RECEPTION STUDY ***

DTV STATIONS LISTED IN INCREASING DISTANCE ORDER

DIST MILES	CHAN	CALL	LOCATION	STATE	NETWK	DTV	POWER kW	OFST	HAAT FT.	AZIMUTH DEGS.	LEVEL dBmV	POLAR
22.51	45	WEDN	NORWICH*	CT.	ED	X	200.0	0	630.	155.2	2.6	H
23.39	47	WYDN	WORCESTER*	MA.	ED	X	101.0	0	1306.	16.0	-0.8	H
23.63	33	WFSB	HARTFORD	CT.	CBS	X	500.0	0	932.	263.2	6.9	H
25.93	5	WTIC	HARTFORD	CT.	FOX	X	9.8	0	1014.	252.9	2.0	H
25.94	11	WWLP	SPRINGFIELD*	MA.	NBC	X	2.0	0	879.	315.6	-10.7	H
26.11	46	WUVN	HARTFORD*	CT.	SP	X	100.0	0	801.	252.3	-1.7	H
26.11	35	WVIT	NEW BRITAIN	CT.	NBC	X	87.0	0	1499.	252.3	-1.7	H
26.11	32	WEDH	HARTFORD*	CT.	ED	X	200.0	0	1447.	252.3	2.2	H
28.63	34	WHPX	NEW LONDON	CT.	PAX	X	90.0	0	1191.	164.1	-2.2	H
33.09	58	WGBY	SPRINGFIELD	MA.	ED	X	50.0	0	965.	332.5	-7.5	H
33.12	55	WGGB	SPRINGFIELD*	MA.	ABC	X	500.0	0	1063.	332.5	2.7	H
40.22	12	WTXX	WATERBURY*	CT.	WBN	X	19.0	0	921.	239.3	-4.9	H
40.67	17	WPXQ	BLOCK ISLAND*	R.I.	PAX	X	200.0	0	732.	114.2	-0.6	H
41.27	10	WTNH	NEW HAVEN	CT.	ABC	X	175.0	0	1191.	229.0	4.8	H
41.28	39	WCTX	NEW HAVEN*	CT.	UPN	X	100.0	0	1000.	229.0	-5.3	H
44.32	6	WEDY	NEW HAVEN*	CT.	ED	X	0.4	0	260.	220.7	-24.8	H
48.39	29	WUNI	WORCESTER	MA.	SP	X	200.0	0	1486.	42.1	-3.0	H
50.40	42	WBPT	BRIDGEPORT*	CT.	PAX	X	778.0	0	499.	231.7	-9.6	H

* DTV STATIONS NOT ON THE AIR
LICENSED ONLY

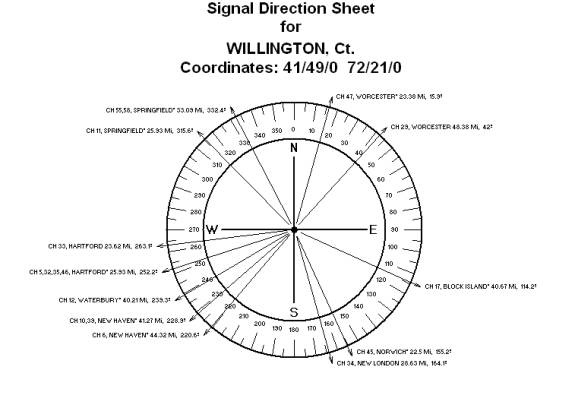

For on-site testing, to verify the status of the DTV stations, the Signal Direction Sheet is the ultimate survey tool.

DIGITAL TV STATIONS
WITHIN 50 MILES

INTERFERENCE INFORMATION

DTV to DTV and Analog to DTV co-channel interference.  A real and present danger.

CHAN

CALL

LOCATION

STATE

NTWK

DTV

POL

POWER kw

OFST

HAAT FEET

DIST

AZIMUTH DEGS.

DESIRED STATION

10

WTNH

NEW HAVEN

CT.

ABC

X

H

175.0

0

1191.

41.27 MI

229.0

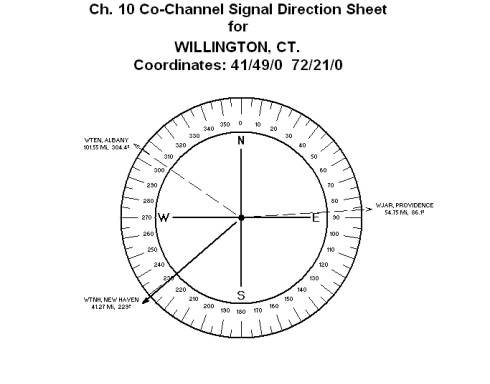

CO-CHANNEL CALCULATION

REL ANG

10

WJAR

PROVIDENCE

R.I.

NBC

H

316.0

+

1000.

54.76 MI

86.2

142.9

10

WTEN

ALBANY

N.Y.

ABC

H

200.0

-

1000.

101.56 MI

304.5

75.5

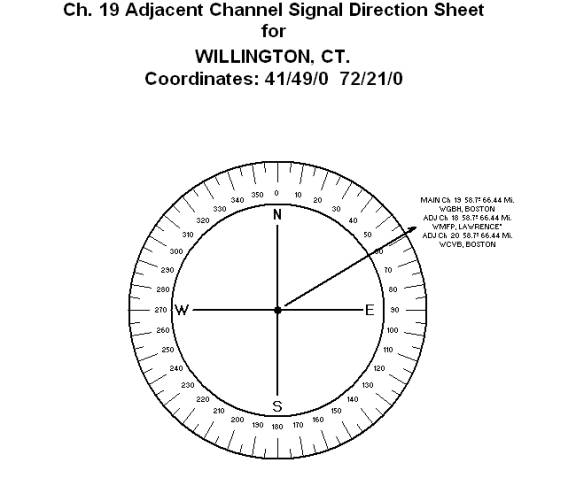

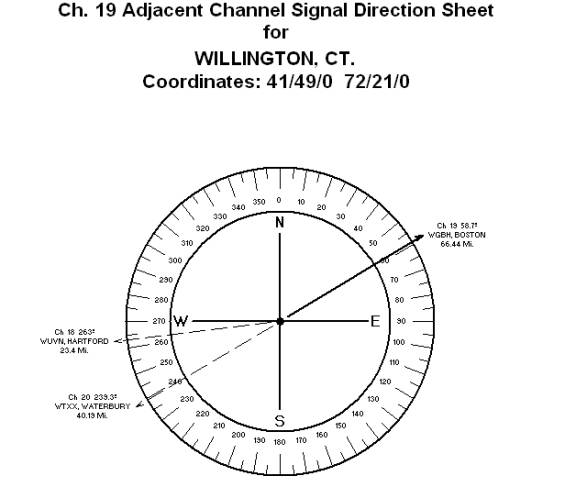

Analog to DTV and DTV to DTV adjacent channel interference.  A consistent and devastating picture quality problem.

DIGITAL ONLY
